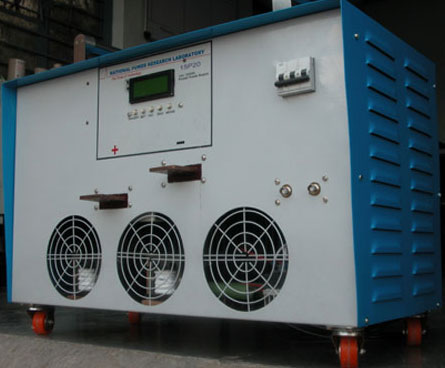

This is a microprocessor controlled Pulsed/ DC power source where current pulse frequency, duty cycle and pulse amplitude are programmable through front panel key board. The power source can give 2000A peak current @ 33% duty cycle or it can give 600 A continuous current.
| Parameter | Value |
|---|---|
| Input Voltage | 415V50 Hz, balanced 3 phase power |
| Output Voltage | 15V Maximum |
| Output DC Current | 50-600A @ maximum 15V output voltage |
| Pulsed output current | 2000A Max @ 15V |
| Duty Cycle | 10% - 33% |
| Frequency | 1Hz- 100Hz |
| Protections | Over current, Over voltage, Under voltage Over temperature |
| Current monitoring | BNC connector, 3V = 2000A |
| Voltage Monitoring | BNC connector, 15V = 15V |
| Cooling | Forced air cooling |
| Weight | 43 kg |
