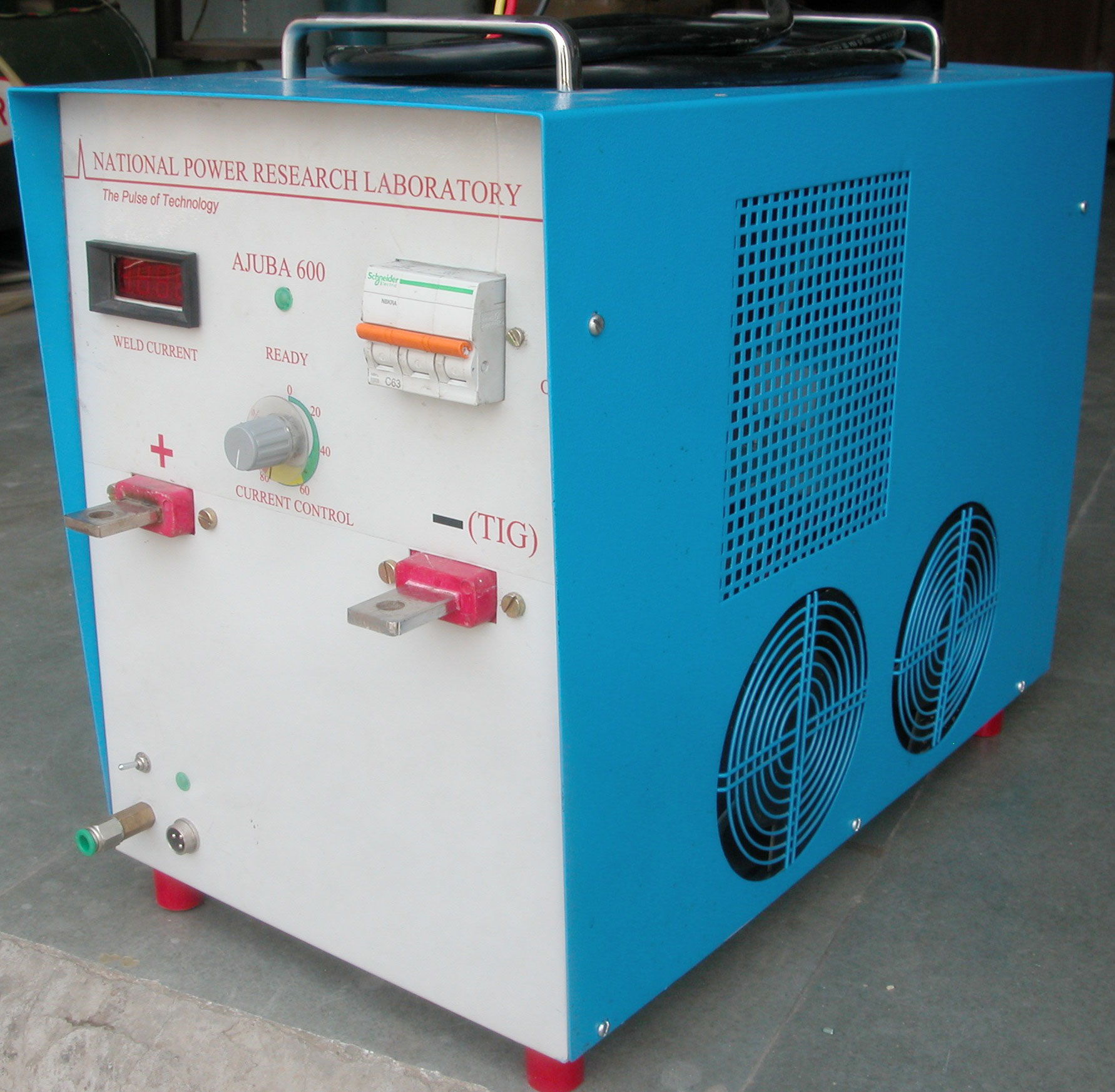

(Ajuba 600P3)

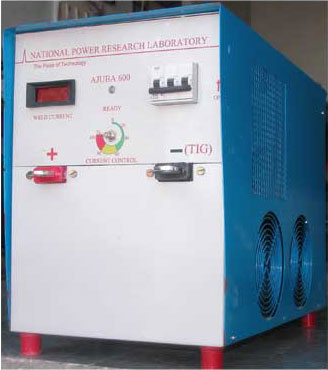

(Ajuba 600P3T)
| Parameter | Ajuba 500P3 | Ajuba 500P3T | Ajuba 600P3 | Ajuba 600P3T |
|---|---|---|---|---|
| MMAW | YES | YES | YES | YES |
| TIG | No | YES | No | YES |
| Input Power | 3- Phase, 415V | 3- Phase, 415V | 3- Phase, 415V | 3- Phase, 415V |
| Allowable voltage fluctuation | +15% -20% | +15% -20% | +15% -20% | +15% -20% |
| Maximum Current | 500 A@40%duty | 500A@70%duty | 600A@40%duty | 600A@70%duty |
| Continuous Current | 350A MMAW | 350A MMAW 400A TIG | 450A MMAW | 450A MMAW 500A TIG |
| Mains Power @100% Duty Cycle | 12.6 kW (MMAW) | 12.6 kW (MMAW) 11 kW (TIG) | 15.75 kW (MMAW) | 15.75 kW (MMAW) 13.5 kW (TIG) |
| Open Circuit Voltage | 60V-70V | 60V-70V | 60V-70V | 60V-70V |
| Efficiency | 94% | 94% | 94% | 94% |
| Input Power Factor | 0.93 | 0.93 | 0.93 | 0.93 |
| Line Current @160A (4mm electrode)/TIG | 7A (MMAW) | 7A (MMAW) 5A (TIG) | 7 A (MMAW) | 7A (MMAW) 5 A (TIG) |
| Line Current@ 400A ; 36V arc voltage | 23A | 23A | 23A | 23A |
| Operating Temperature | 35C | 35C | 35C | 35C |
| Cooling | Forced Air Cooling | Forced Air Cooling | Forced Air Cooling | Forced Air Cooling |
| Protections | Under Voltage Over Voltage Over Temperature | Under Voltage Over Voltage Over Temperature | Under Voltage Over Voltage Over Temperature | Under Voltage Over Voltage Over Temperature |
| Insulation | Class F | Class F | Class F | Class F |
| Enclosure | IP20 | IP20 | IP20 | IP20 |
| Size | 290mm(W)x385mm (H)x 511mm(D) | 290mm(W)x385mm (H)x 511mm(D) | 290mm(W)x385mm (H)x 511mm(D) | 290mm(W)x385mm (H)x 511mm(D) |
| Weight | 28 kg | 30kg | 29.5 kg | 30.9kg |
| Due to continuous up gradation of our technology and products we reserve the right to change specifications without a prior notice. | ||||
