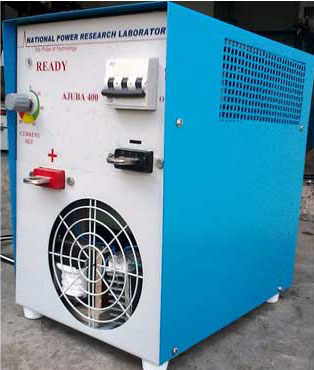

(Ajuba 400P3)

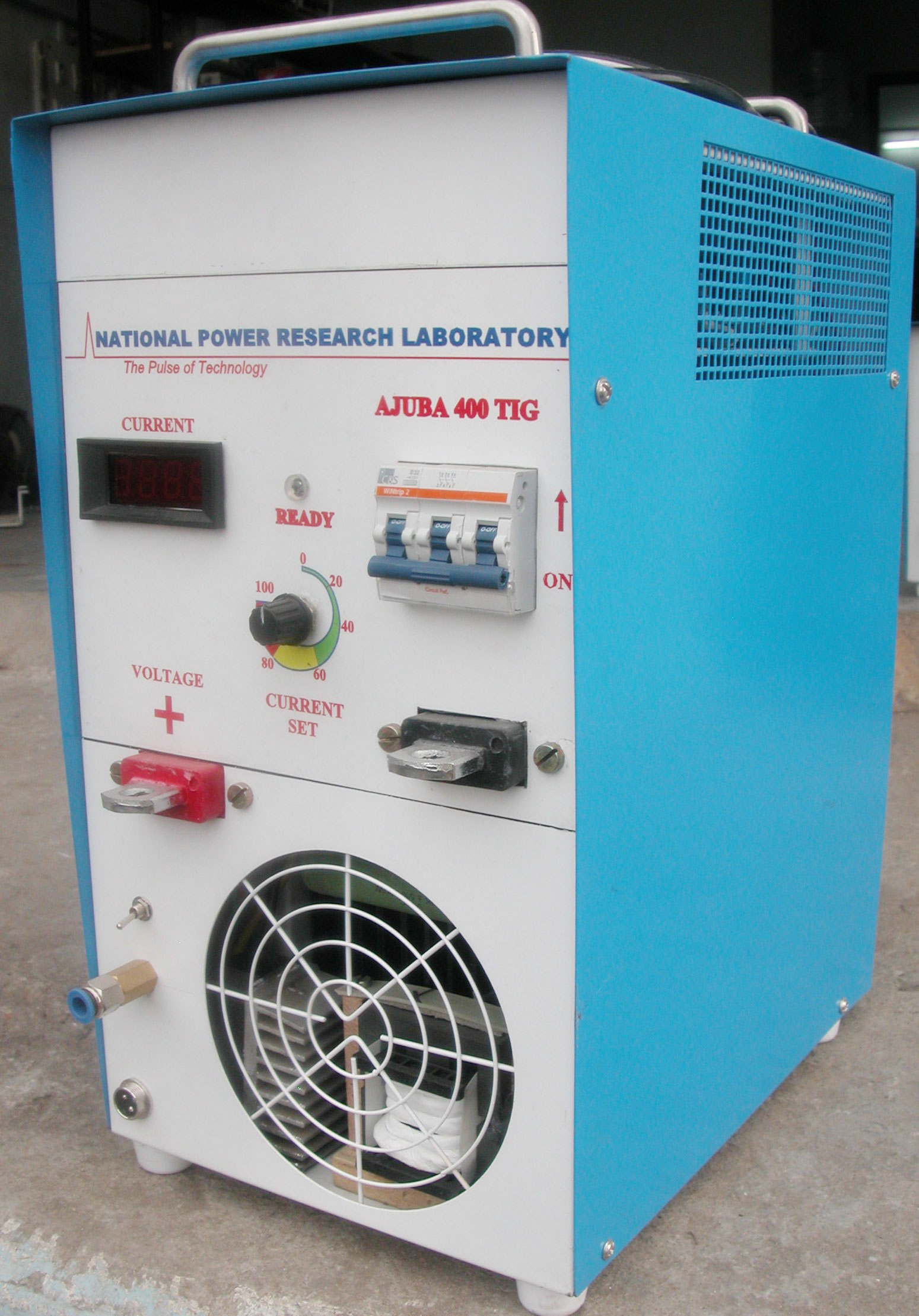

(Ajuba 400P3T)

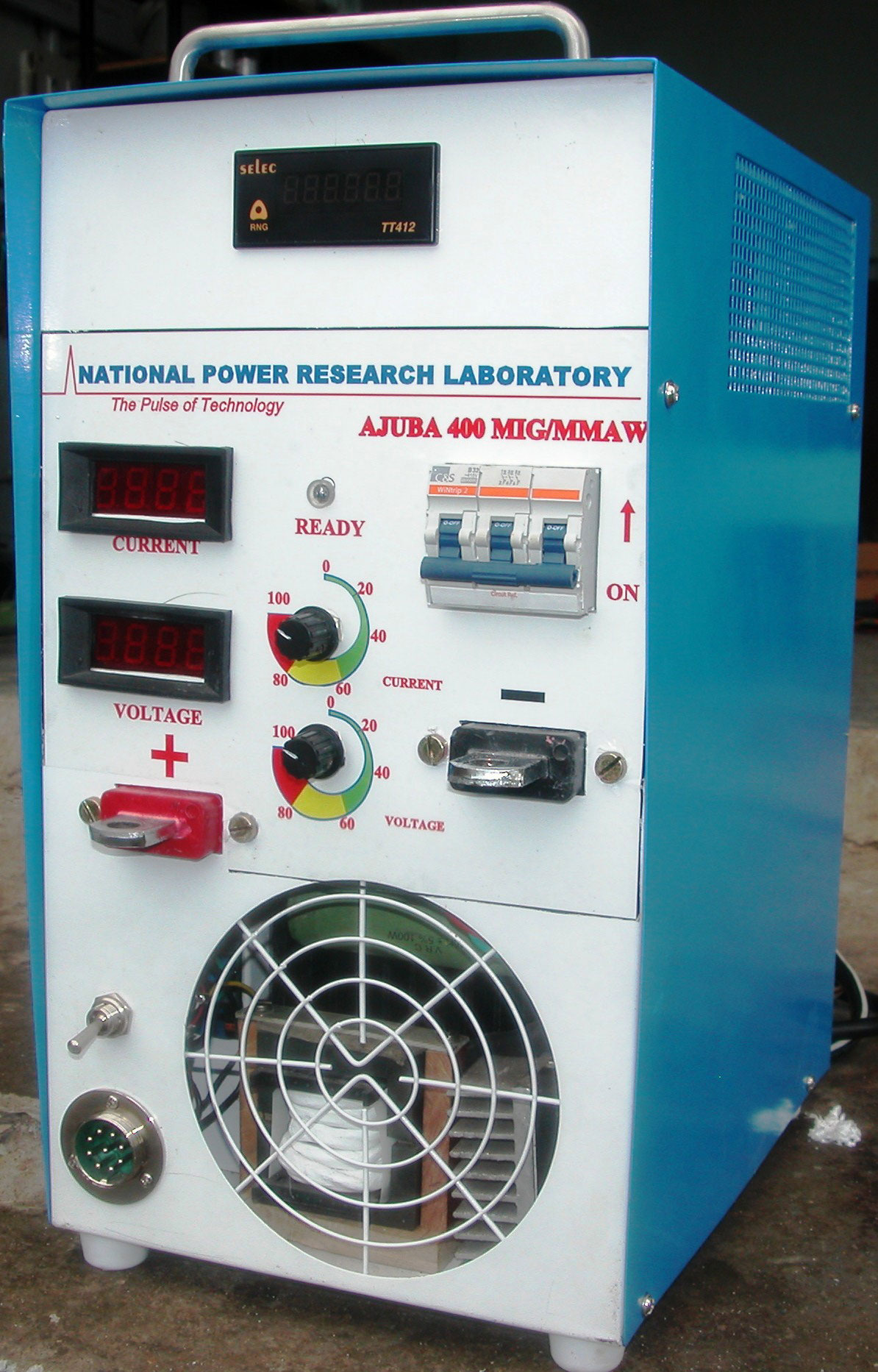

(Ajuba 4003M)
| Parameter | Ajuba 400P3 | Ajuba 400P3T | Ajuba 4003M |
|---|---|---|---|
| MMAW | YES | YES | - |
| TIG | - | YES | YES |
| CO2 MIG | - | - | YES |
| Input Power | 3- Phase, 415V | 3- Phase, 415V | 3- Phase, 415V |
| Allowable voltage fluctuation | +15% -20% | +15% -20% | +15% -20% |
| Maximum Current | 400A | 400A | 400A |
| Continuous current | 290A | 290A MMAW 330A TIG | 290A MMAW 330A TIG |
| Open Circuit Voltage | 60V-70V | 60V-70V | 60V-70V |
| Efficiency | 94% | 94% | 94% |
| Input Power Factor | 0.93 | 0.93 | 0.93 |
| Line Current with 4mm electrode, 160A current | 5-6A | 5-6A | 5-6A |
| Line Current 160A TIG | - | 4.5A | 4.5A |
| Operating Temperature | 350C | 350C | 350C |
| Cooling | Forced Air Cooling | Forced Air Cooling | Forced Air Cooling |
| Protections | Under Voltage Over Voltage Over Temperature | Under Voltage Over Voltage Over Temperature | Under Voltage Over Voltage Over Temperature |
| Insulation | Class F | Class F | Class F |
| Enclosure | IP20 | IP20 | IP20 |
| Size | 230mm(W)x340mm (H)x 350mm (D) | 230mm(W)x420mm (H)x 350mm (D) | 230mm(W)x420mm (H)x 350mm (D) |
| Weight | 16kg | 18 kg | 18 kg |
| Due to continuous up gradation of our technology and products we reserve the right to change specifications without a prior notice. | |||
