1000P01: All Solid State Fast Pulse Generator

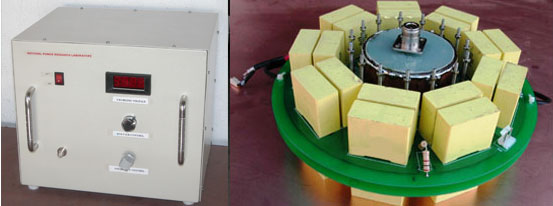

Model 1000P01 is a 2-stage Marx generator made of fast MOSFET,s placed in ultra low inductance geometry. This generator can produce a fast rising almost rectangular pulse of current with in the peak ratings of 100A, 1000V.
Applications
- Research
- Fast magnet excitation
| Parameter | Value |
|---|---|
| Input voltage | 230V+/-10%, 50 Hz, 1- phase |
| Peak pulsed output voltage | 50V – 1000V variable across 10 Ohm resistance |
| Pulse risetime | 10ns (10%-90%) |
| Pulse top flatness | >1% |
| Pulse falltime | 20ns ( 10%-90%) |
| Pulsewidth | 100 ns – 500 ns (FHWM) |
| Peak output current | 100A |
| Voltage Regulation | Better than 1% |
| Pulse repetition rate | 1 Hz -100 Hz |
| Open circuit protection | Protected |
| Short circuit protection | Protected |
| Voltage Monitoring | 3 ½ digit DPM |
| Cooling | Air natural |
| Size | 270 mm (W) x 250 mm (H) x 300 mm (D) |
| Weight | 6 kg |
