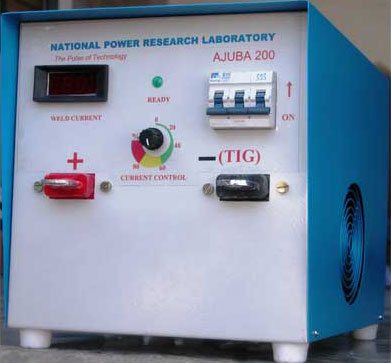

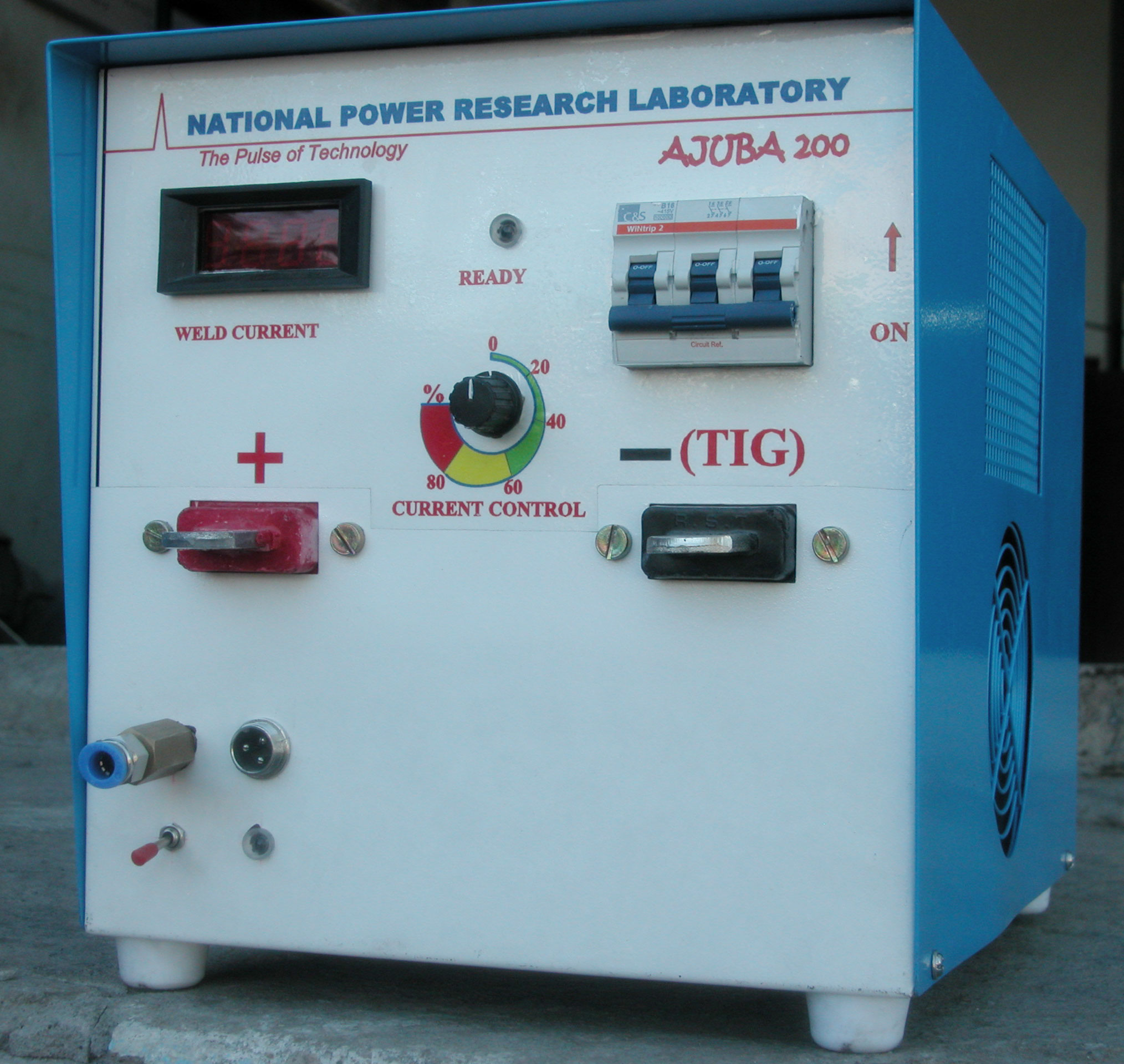

(Ajuba 200P3)
(Ajuba 200P3T)

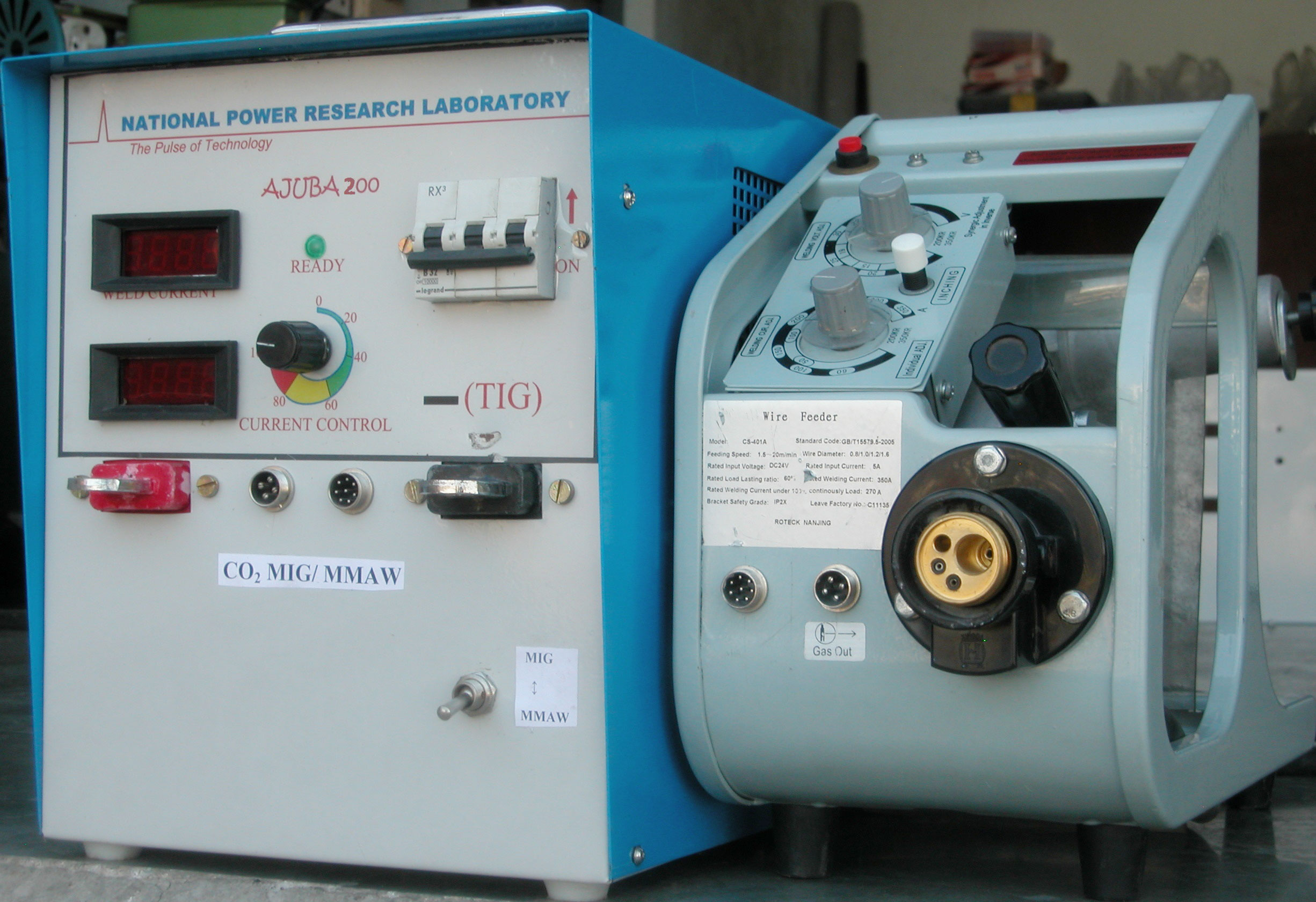

(Ajuba 200P3M)

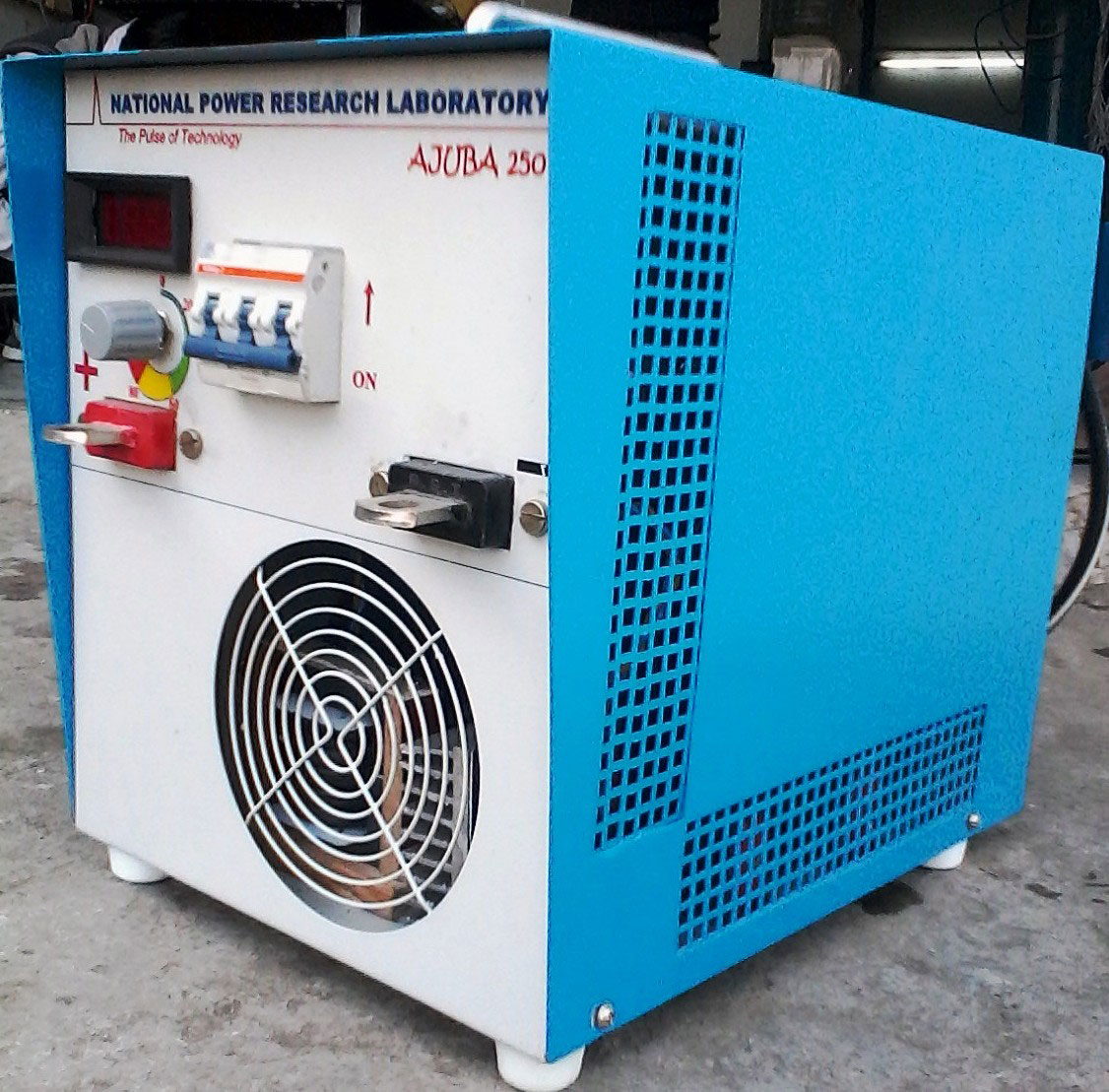

(Ajuba 250P3)
| Parameter | Ajuba 200P3 | Ajuba 200P3T | Ajuba 200P3M | Ajuba 250P3 |
|---|---|---|---|---|
| MMAW | YES | YES | YES | YES |
| TIG | - | YES | - | - |
| MIG | - | - | YES | - |
| Input Power | 3- Phase, 415V | 3- Phase, 415V | 3- Phase, 415V | 3- Phase, 415V |
| Allowable voltage fluctuation | +15% -20% | +15% -20% | +15% -20% | +15% -20% |
| Maximum Current | 200 A | 200 A | 200 A | 250 A |
| Continuous current | 130A | 130A MMAW 170A TIG | 130A MMAW 145A TIG | 150A MMAW |
| Open Circuit Voltage | 60V-70V | 60V-70V | 60V-70V | 60V-70V |
| Efficiency | 93% | 93% | 93% | 94% |
| Input Power Factor | 0.93 | 0.93 | 0.93 | 0.93 |
| Line Current with 4mm electrode, 160A current | 5-6A | 5-6A | 5-6A | 5-6A |
| Line Current 160A TIG | - | 4.5A | - | - |
| Line Current 145A MIG | - | - | 4A | - |
| Operating Temperature | 35C | 35C | 35C | 35C |
| Cooling | Forced Air Cooling | Forced Air Cooling | Forced Air Cooling | Forced Air Cooling |
| Protections | Under Voltage Over Voltage Over Temperature | Under Voltage Over Voltage Over Temperature | Under Voltage Over Voltage Over Temperature | Under Voltage Over Voltage Over Temperature |
| Insulation | Class F | Class F | Class F | Class F |
| Enclosure | IP20 | IP20 | IP20 | IP20 |
| Size | 250mm(W)x270mm (H)x 300mm (D) | 250mm(W)x270mm (H)x 300mm (D) | 260mm(W)x320mm (H)x 450mm (D) | 260mm(W)x320mm (H)x 450mm (D) |
| Weight | 11 kg | 13 kg | 20 kg | 13 kg |
| Due to continuous up gradation of our technology and products we reserve the right to change specifications without a prior notice. | ||||
