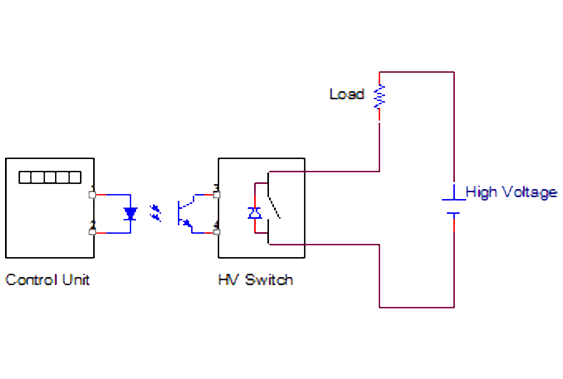

This switch is made of series connected MOSFETs or IGBTs in low inductance configuration. The gate drive pulses are generated by a micro controller unit, facilitating variable frequency variable duty cycle operation. This switch unit can switch high voltage dc voltage across a floating resistive load. The controller unit is isolated from the switching unit by optical isolation.
Application
- Laser switching
- Vacuum tube grid modulation
| Parameter | Value |
|---|---|
| Input voltage | 230V+/-10%, 50 Hz, 1- phase |
| Peak switched voltage | 2 kV |
| Pulse risetime | 100ns (10%-90%) |
| Pulse falltime | 200ns ( 10%-90%) |
| Duty cycle | 1% - 90% variable |
| Peak current | 10A |
| Pulse repetition rate | 1 Hz -100 kHz |
| Open circuit protection | Protected |
| Over load | Protected |
| Display parameters | Switching frequency and duty cycle |
| Cooling | Air natural |
| size | 270 mm (W) x 250 mm (H) x 300 mm (D) |
| Weight | 6 kg |
