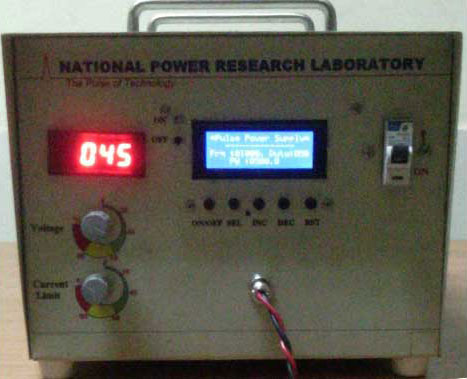

These power sources generate electrical pulses of voltage at high frequency from 100 Hz to 100 kHz at a duty cycle and frequency and amplitude of the output voltage pulse programmable from front panel key board. The power source is completely protected against short circuit.
| Parameter | Value |
|---|---|
| Output voltage | 10V-150V |
| Peak Current | up to 15A |
| Frequency | 100Hz – 10 kHz |
| Duty cycle | 70% max |
| Pulse type | square positive polarity pulse |
| Minimum | Pulsewidth: 100 ns |
| Minimum Pulsewidth | 100 ns |
| Input voltage | 230V, 50Hz, 1-ϕ ac |
| Frequency and duty cycle Programming | by microprocessor |
| Size | 12”(W) x 15 ½”D x 9” (H) |
| Weight | 12.75 kg |
